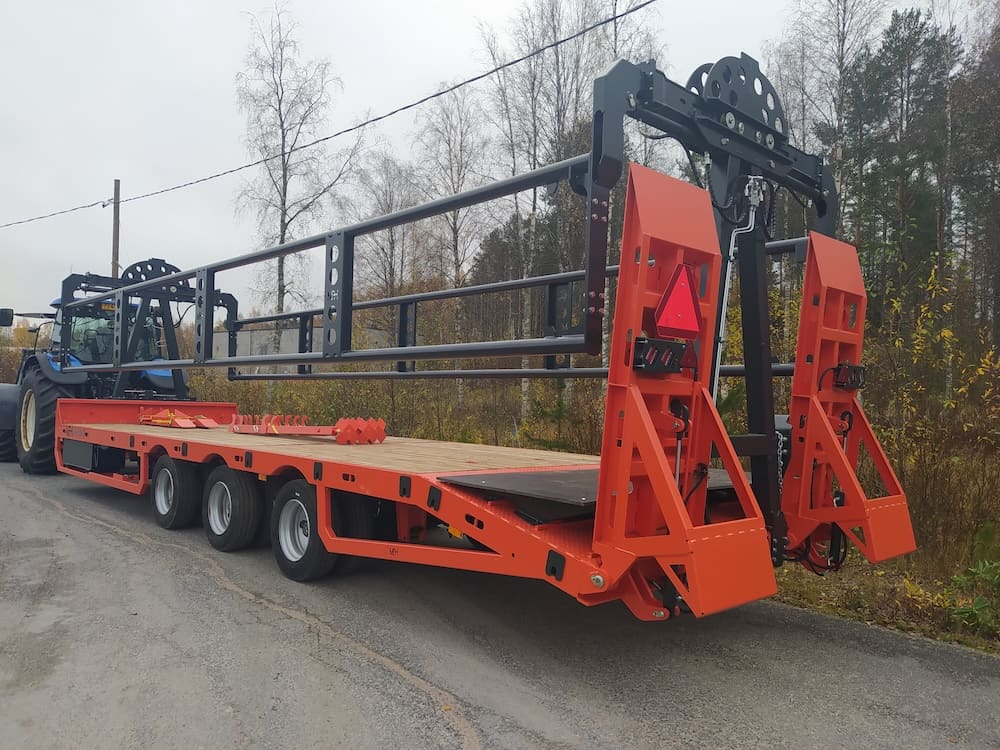

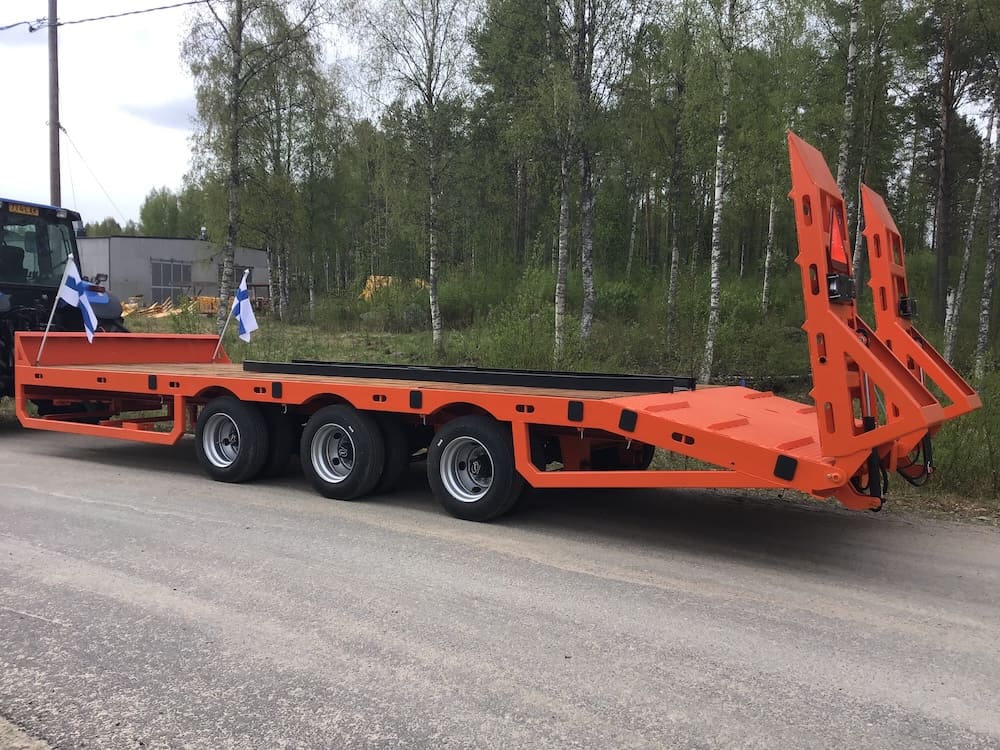

Trailer 30 & 30XL

A robust trailer for versatile transport.

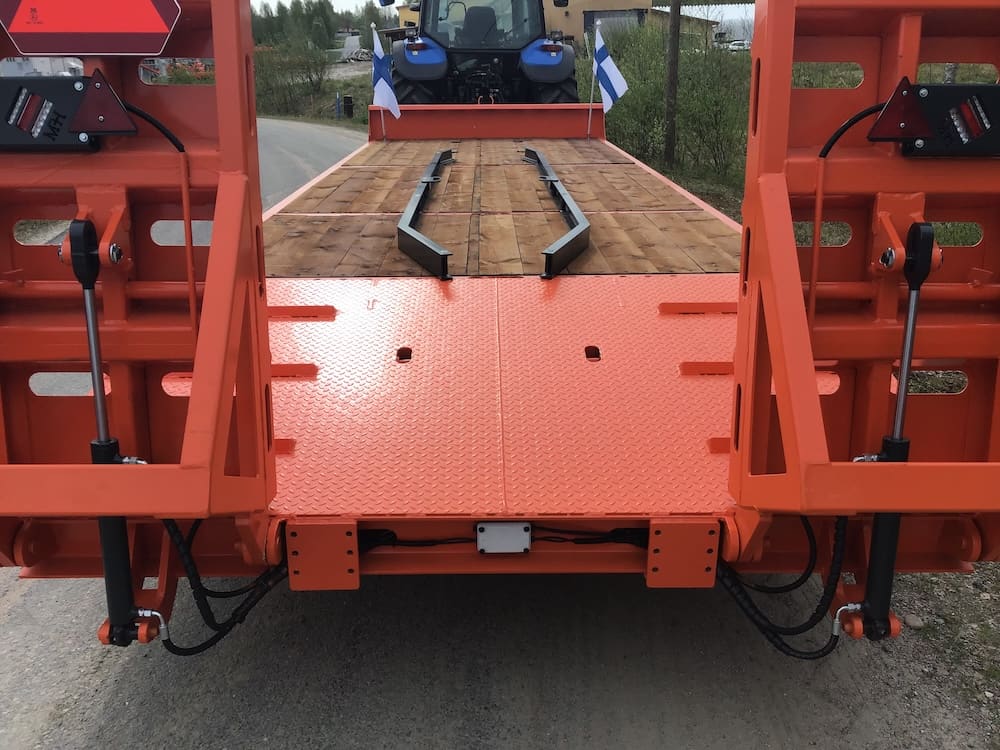

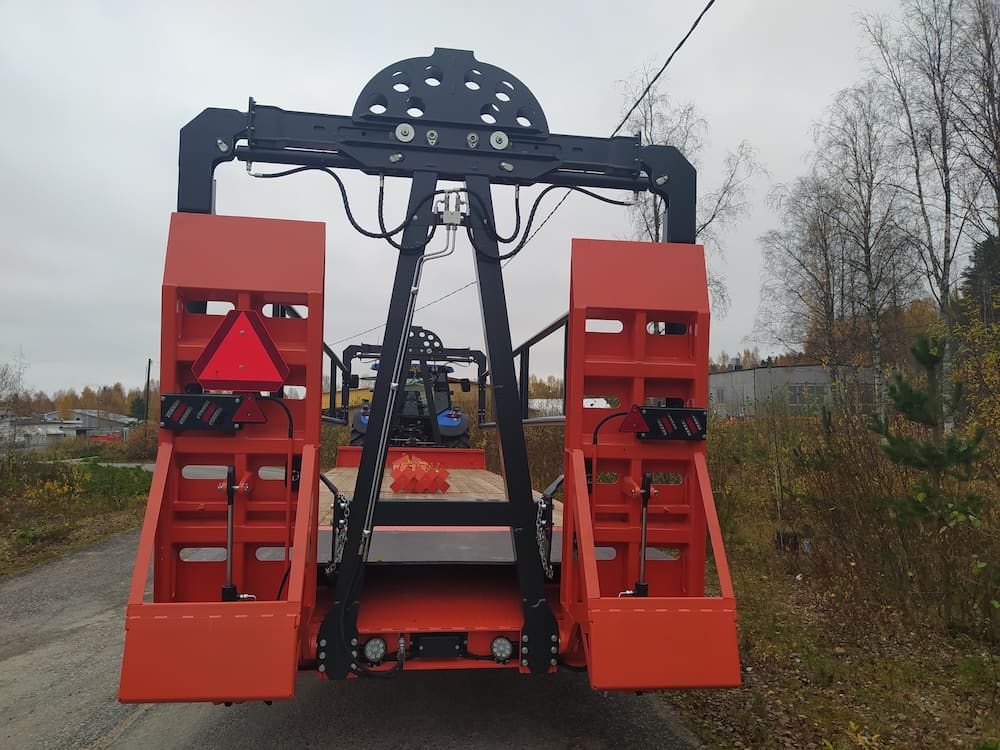

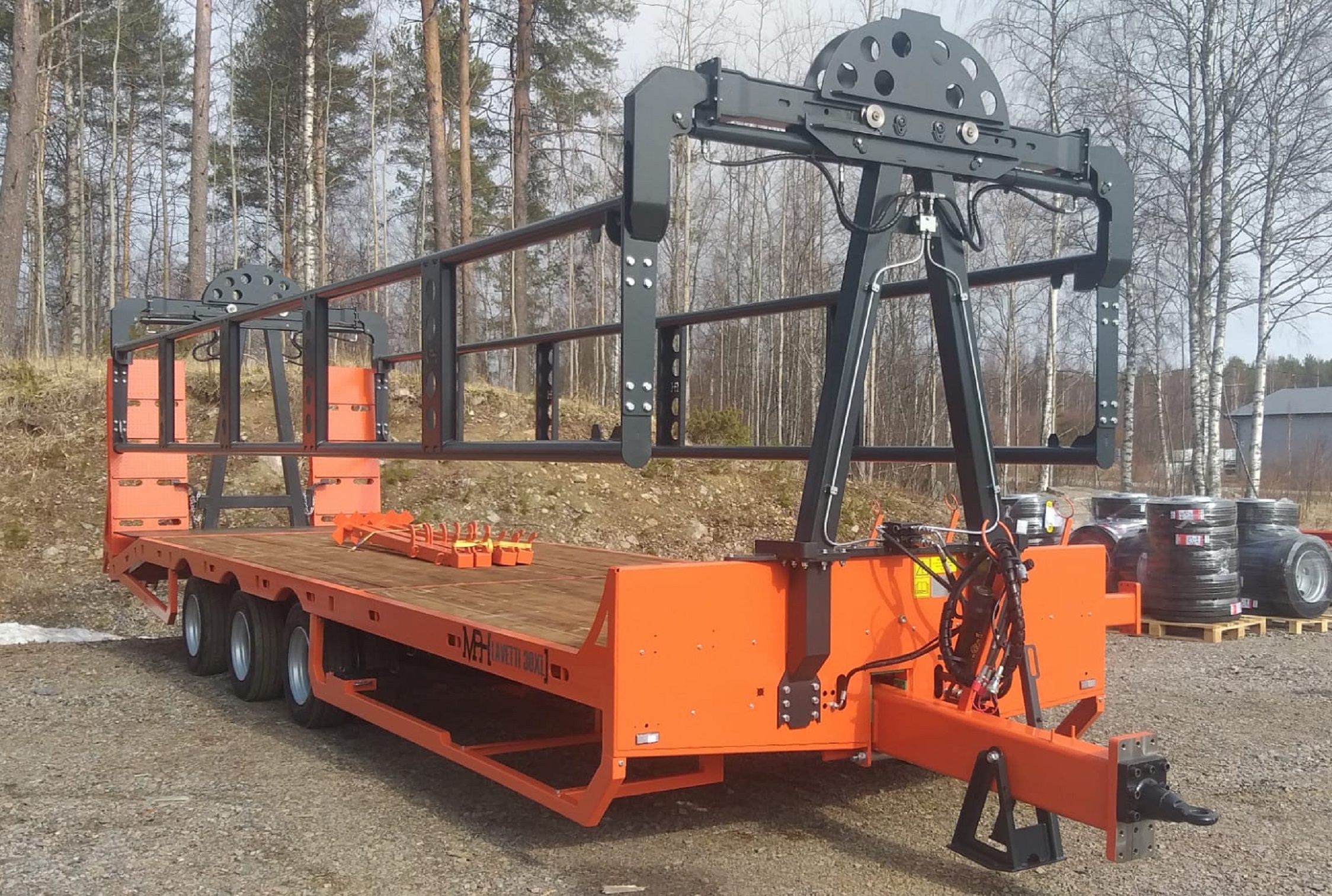

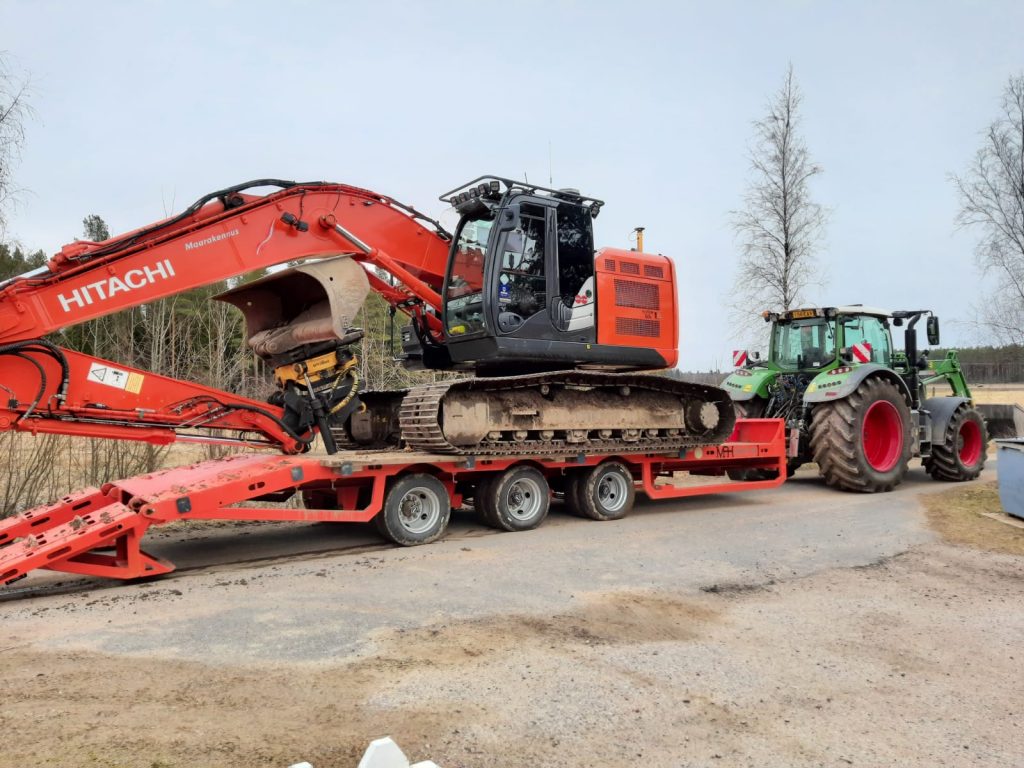

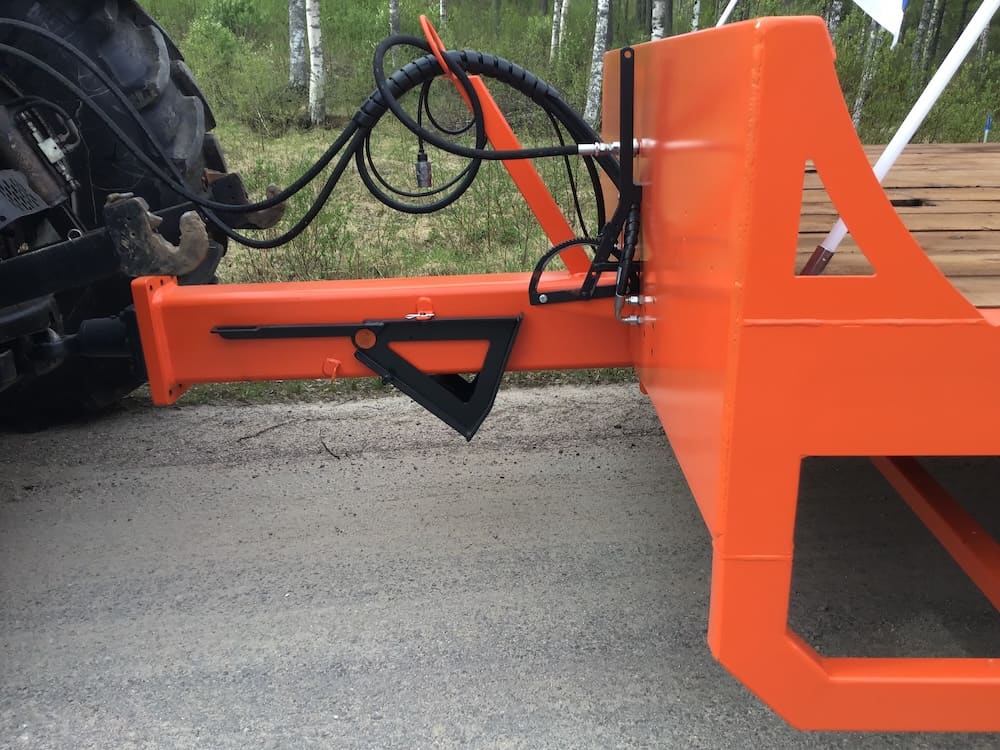

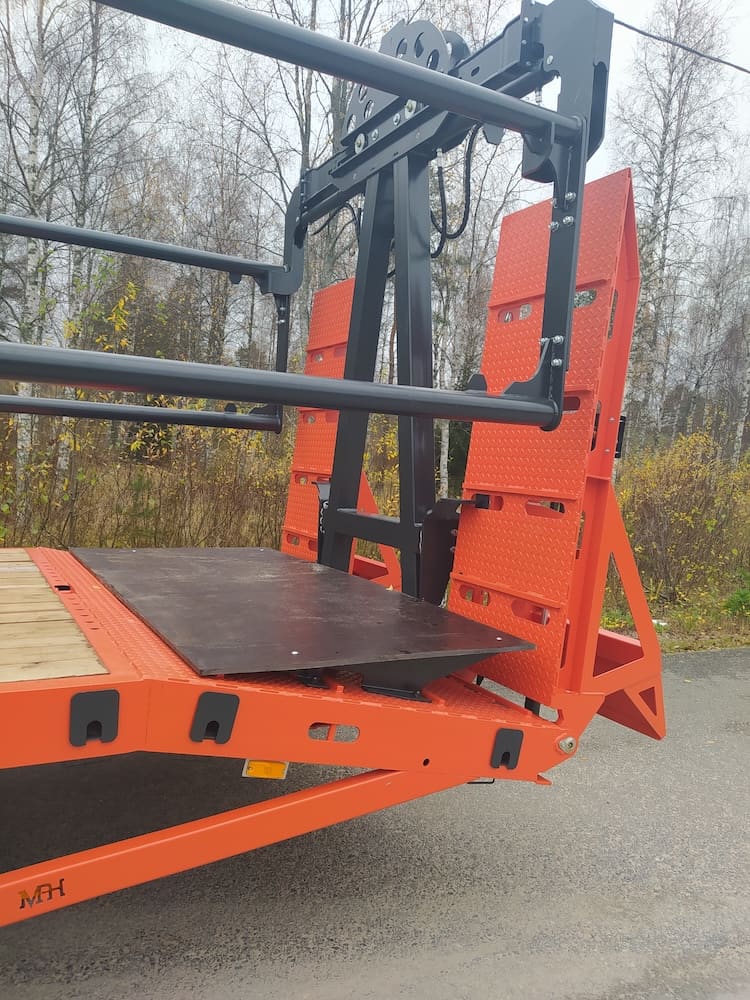

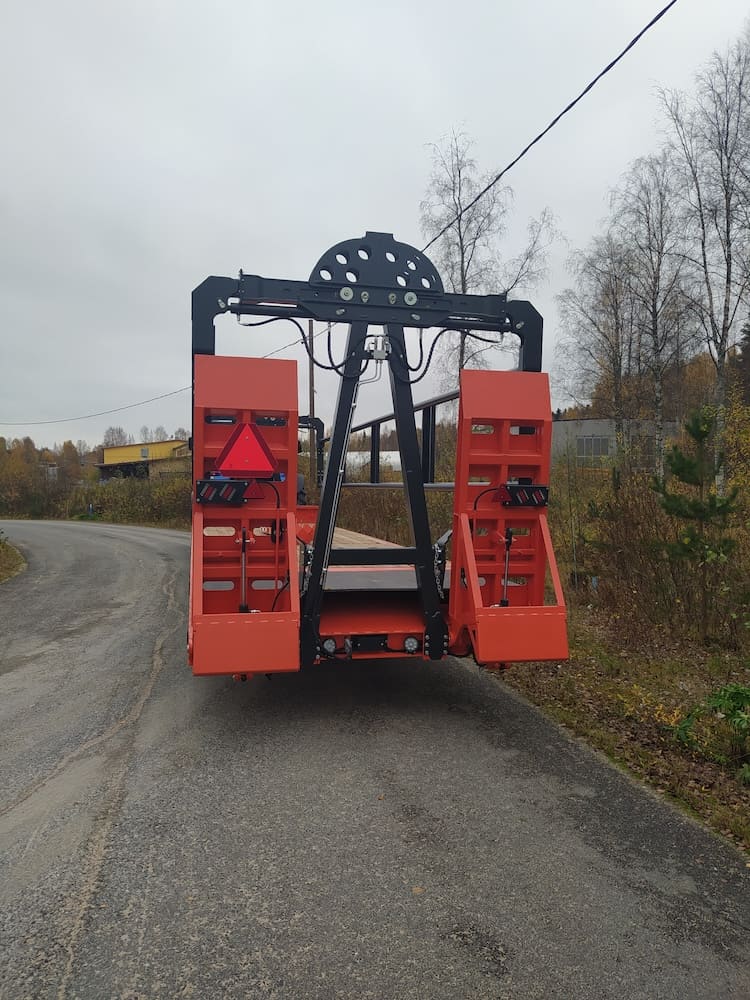

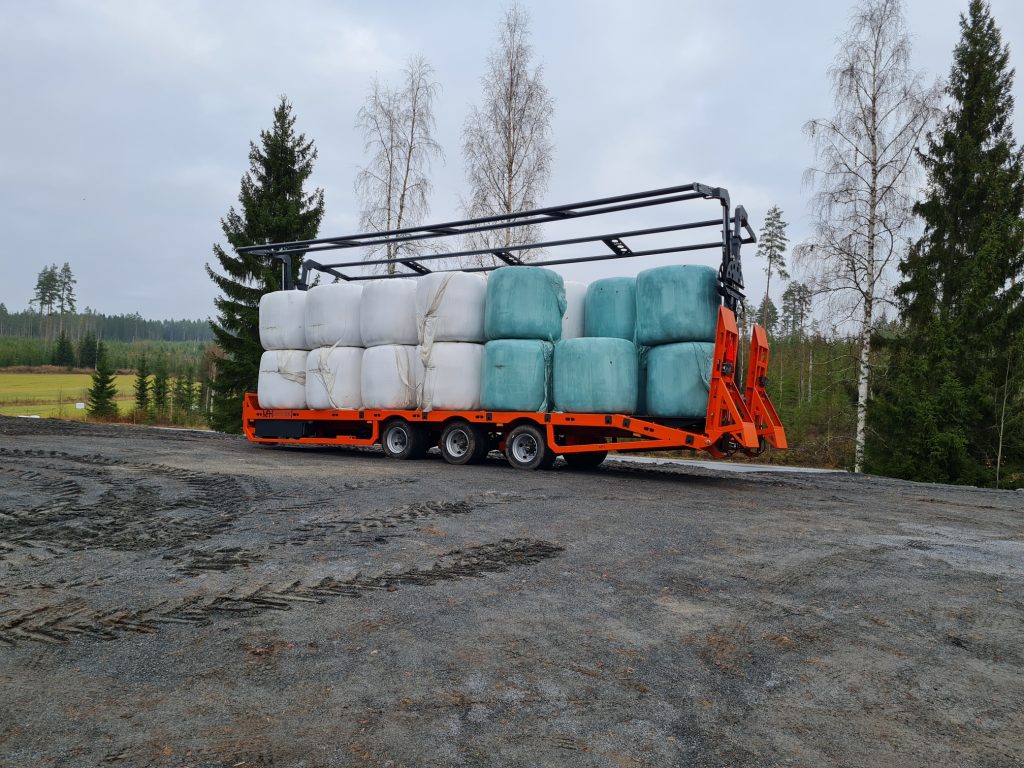

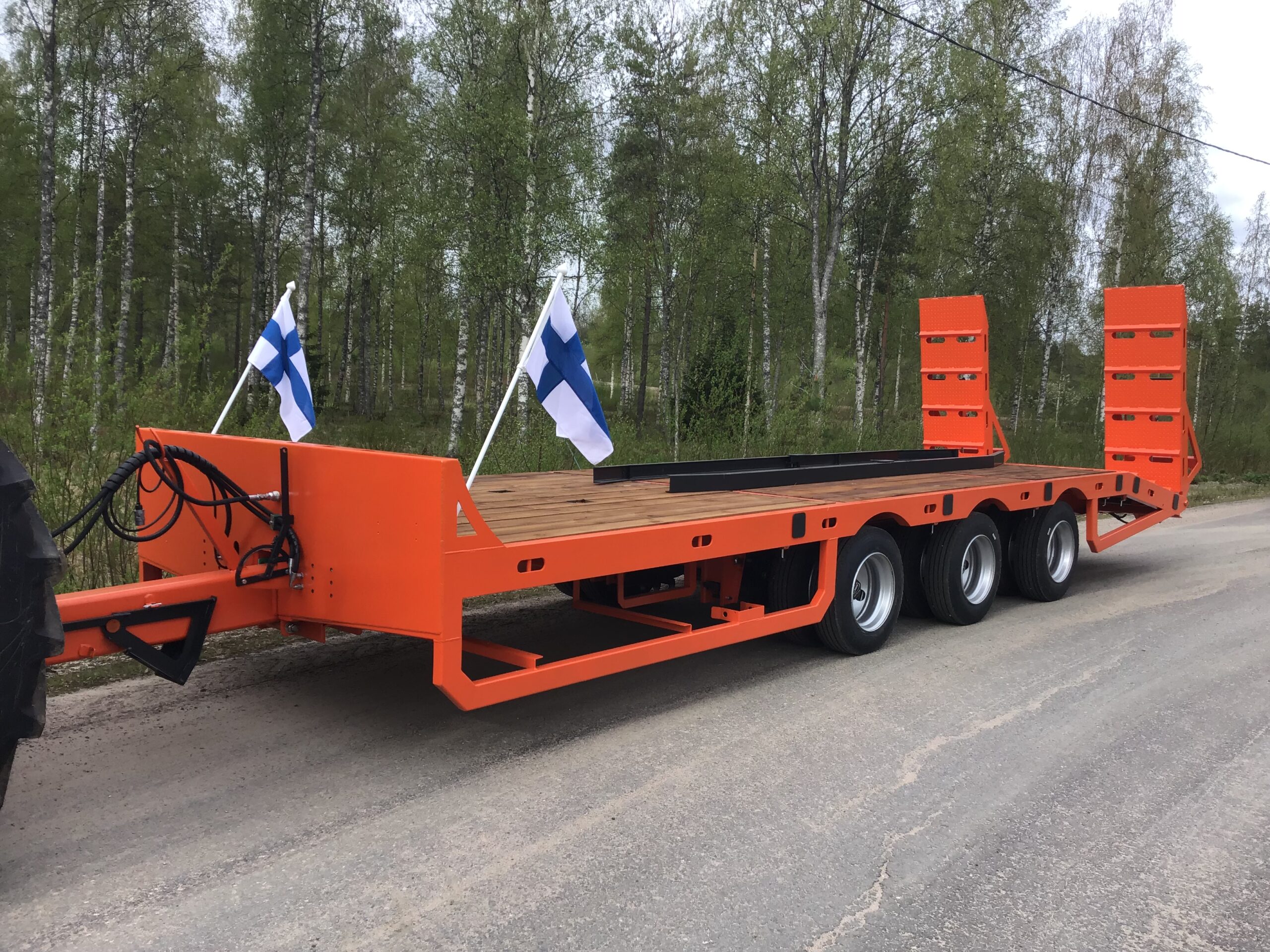

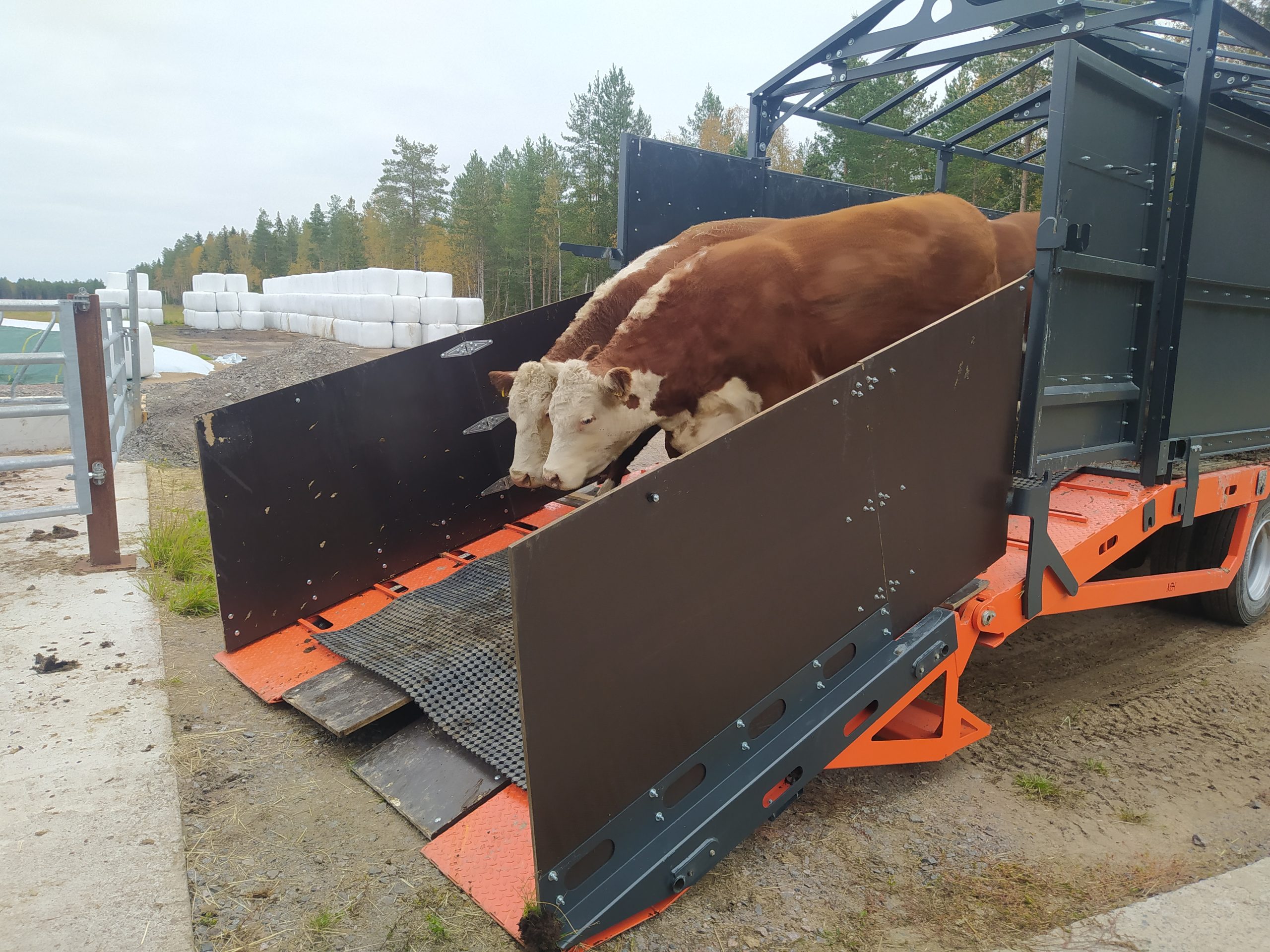

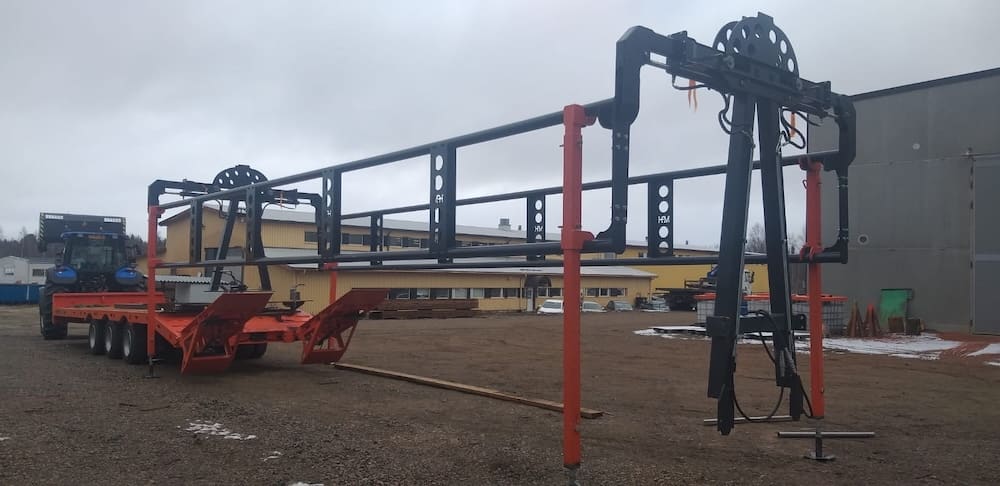

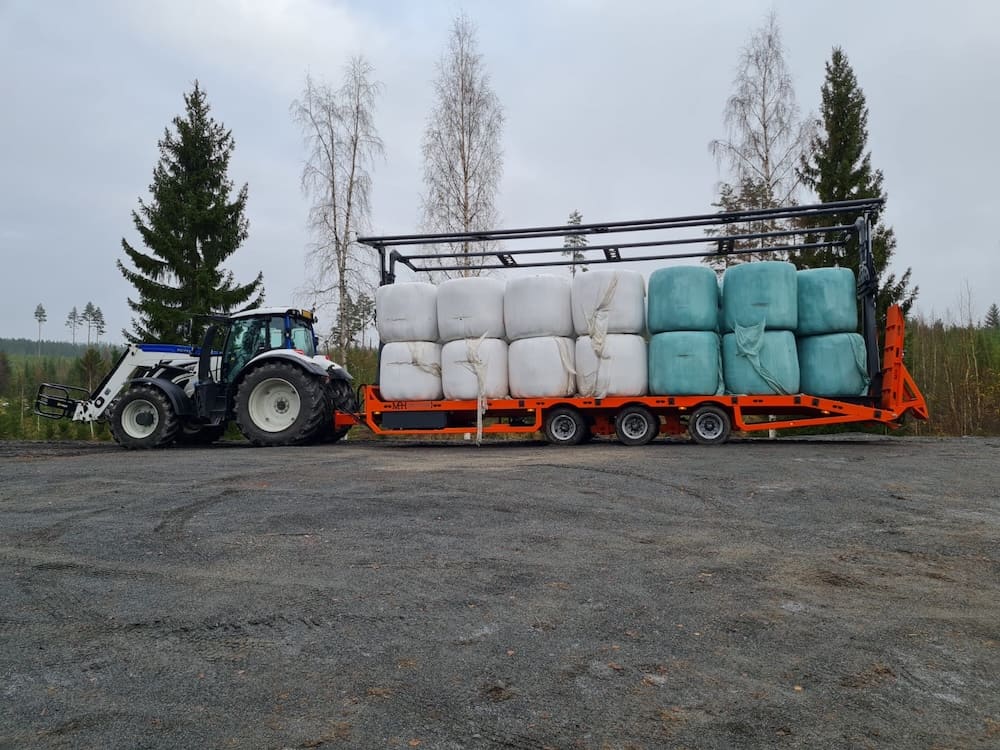

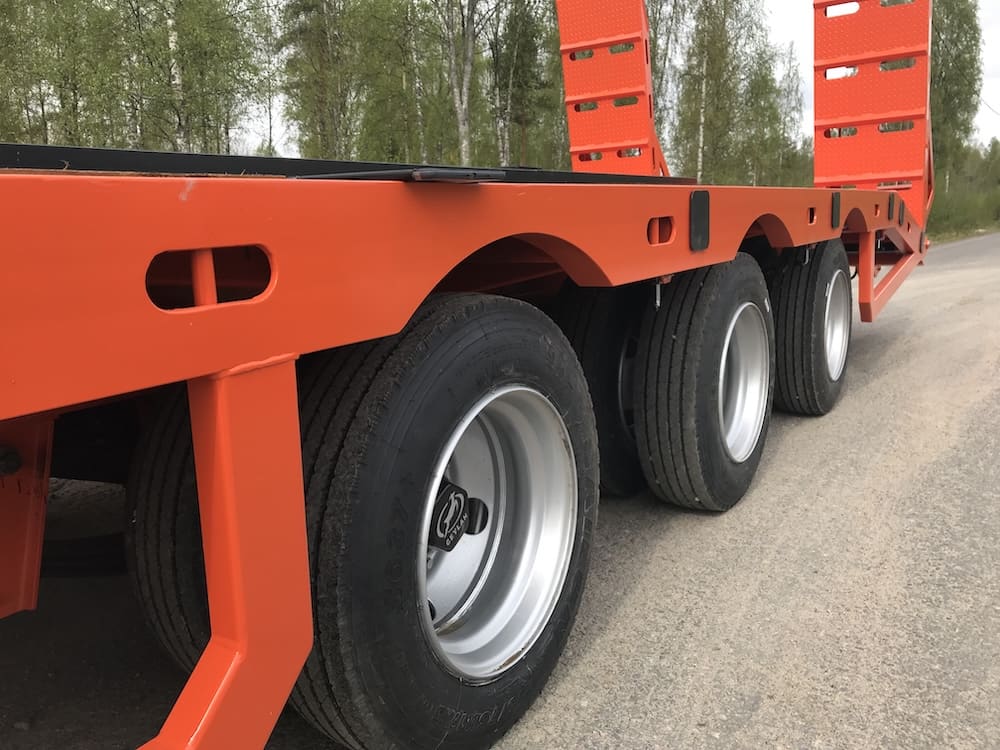

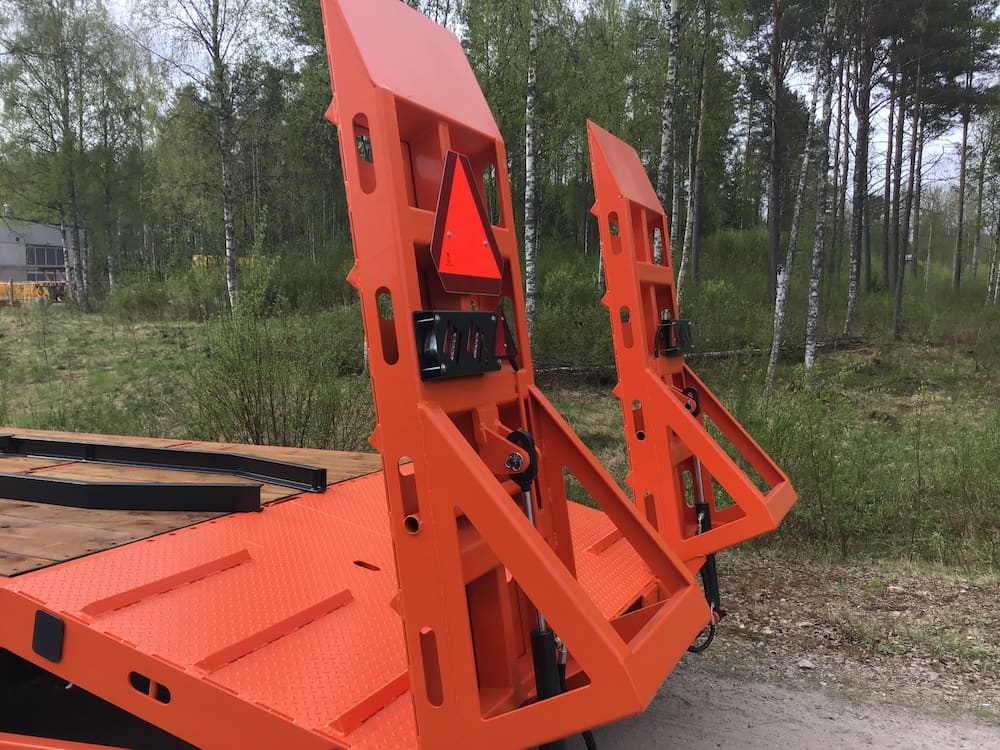

MPH Trailer 30 is a heavy-duty product developed in collaboration with contractors to meet the diverse transport challenges. With its low platform height and strong axle system, the trailer is stable to tow even heavy loads. Numerous small details make daily work easier. MPH Trailer 30 has a spring-loaded drawbar, swivel and adjustable drawbar eye as standard. The axles are robust and the brakes are hydraulically automatically adjustable on each axle. Separate hand brake. The ramps are made of high-strength steel (S650MC) with a yield strength of 650 MPa. The trailer can be tailored to different transport tasks with a wide range of accessories, available at also for trailer already delivered.

	MPH Trailer 30	MPH Trailer 30XL
Dimensions	Load platform length. 8,2m	Load platform length. 9,7 m
- L, W , H	norm. 6,8; 2,55 ja 0,93 m	norm. 8,3; 2,55 ja 0,93 m
Tyres	12x215/75/17,5; M+S (10 bolts)	12x215/75/17,5; M+S (10 bolts)
Total weight	30 t (technical load capacity 25 t)	30 t (technical load capacity 24 t)
Drum brakes	300x200 (load sensing)	300x200 (load sensing)
Binding points	26 kpl	26 kpl

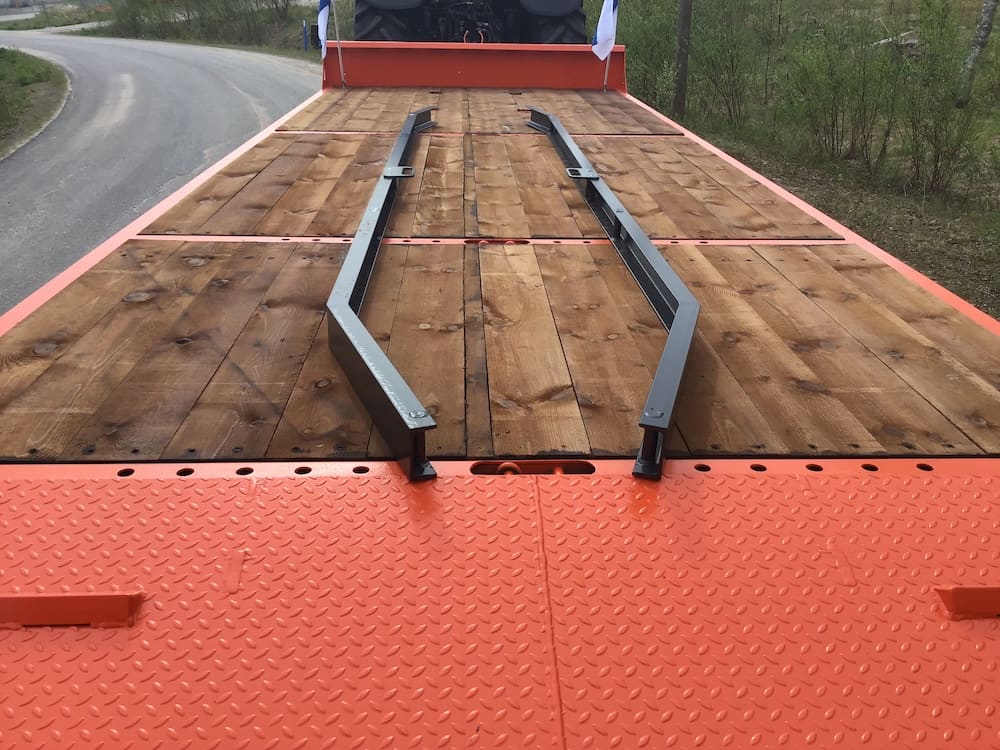

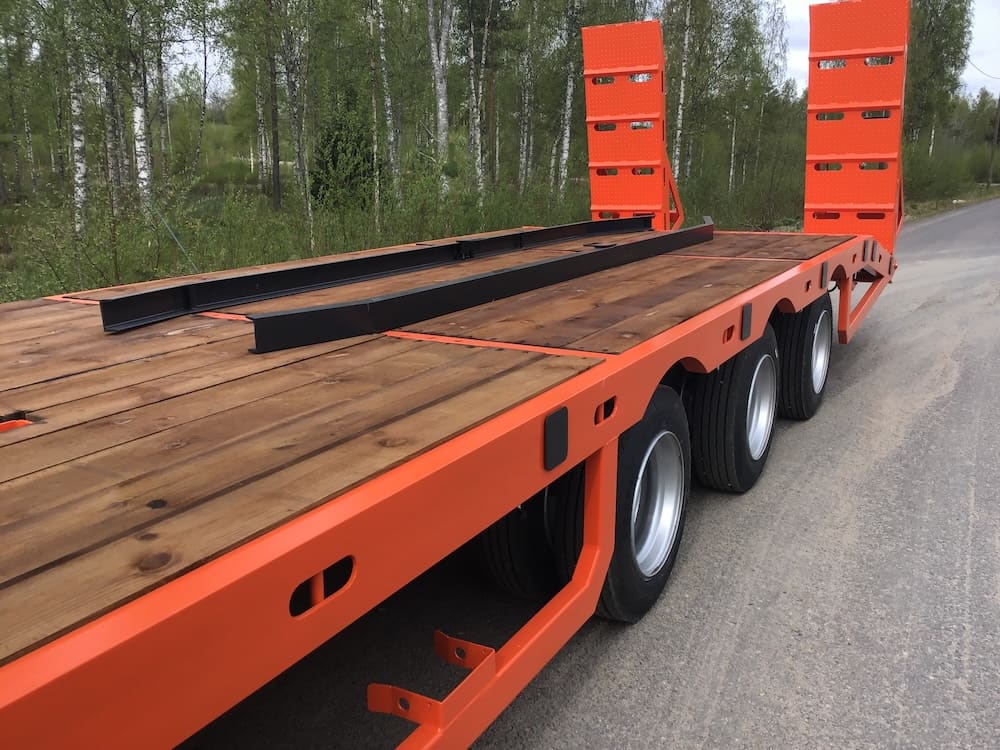

Floor	Pressure treated wood floor (thickness 50 mm)	Pressure treated wood floor (thickness 50 mm)
