Grader 5.3

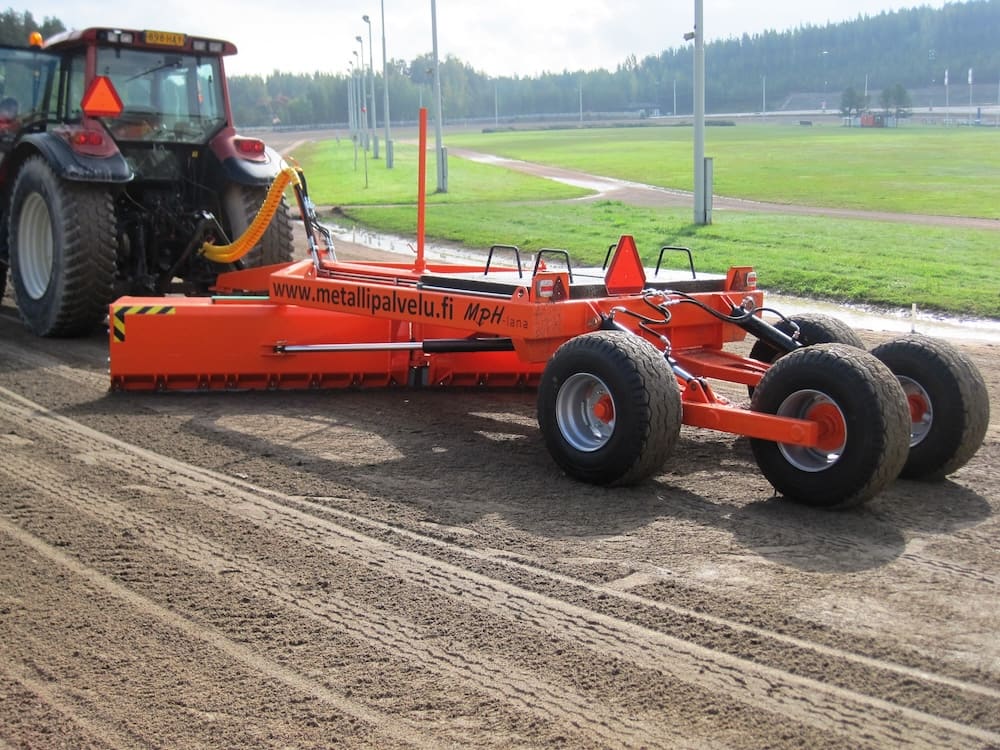

MPH Grader 5.3 levels fields effectively - With Laser or GPS altitude leveling system.

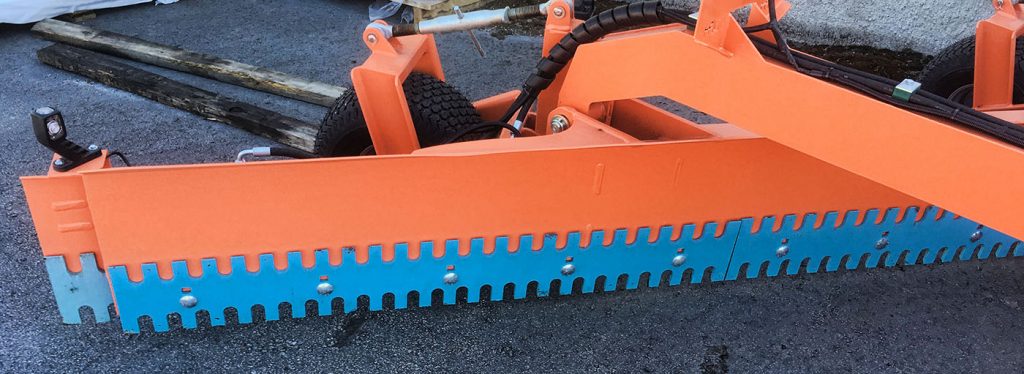

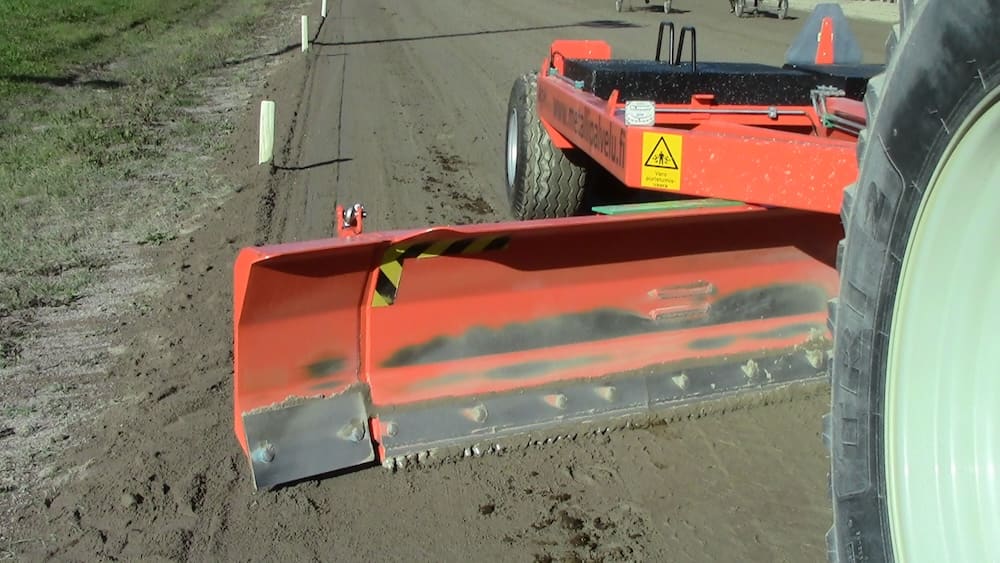

Bumpy roads can be leveled effectively with toothed blades on front wings and stone collector.

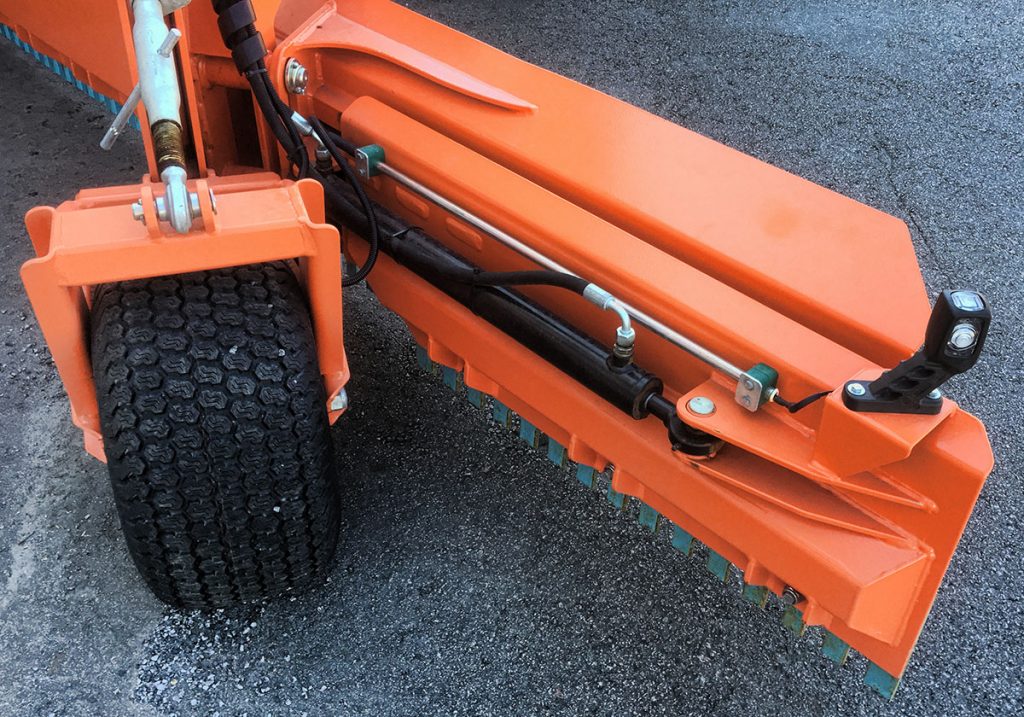

MPH Grader 5.3 wing slope adjustment helps water control on roads and fields.
Versatile Grader can be used all year round - f.g. removal of packed snow and edges on roads.

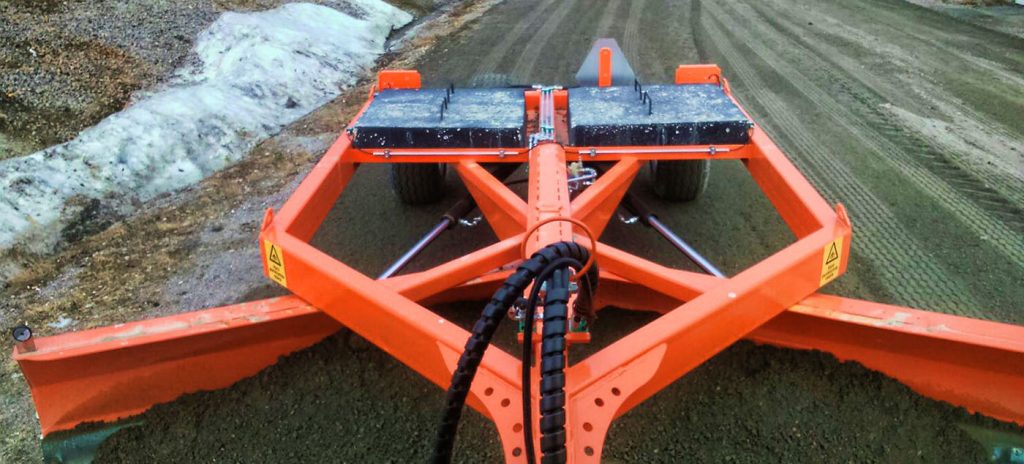

MPH Grader 5.3 is made of high-strength steel for heavy use. It is a dream tool for a contractor and a farmer to save time and fix problems. MPH Grader 5.3 can level sandy roads, fields, racetracks, remove packed snow from roads, plow away snow on roads and level crushed rock f.g. on construction and road sites - A versatile tool for year-round use.



  • Commissioning, wing slope adjustment, adjusting the blades and putting the transport position are hydraulically operated as a standard option. You can use the lateral shaping method in grader to shape  road or field profiles as you like.
  • Safety valves as standard option in the cylinder blades prevent damage in a collision. The wings can be set to the desired position.
  • Double-tilt of the leveling laser allows you to profile your entire field in the range with 800 m. Trimble GPS Altitude Automation - You also get fully automated tilt control. Please ask more details about this option from us!
  • Stone collector/rear blade, pin blade frames and support wheels as an accessory give you the first chance to shape your way as you wish.
NameMPH-lana 5.3
Max working width5,3 m
Transport width3,4 m
Length7.0 m
Weight (field version)2900 kg
Weight (road version)4000 kg
Hydraulics3 pcs 2-action valves
Minimum tractor size150 hp, 6000 kg
Options:

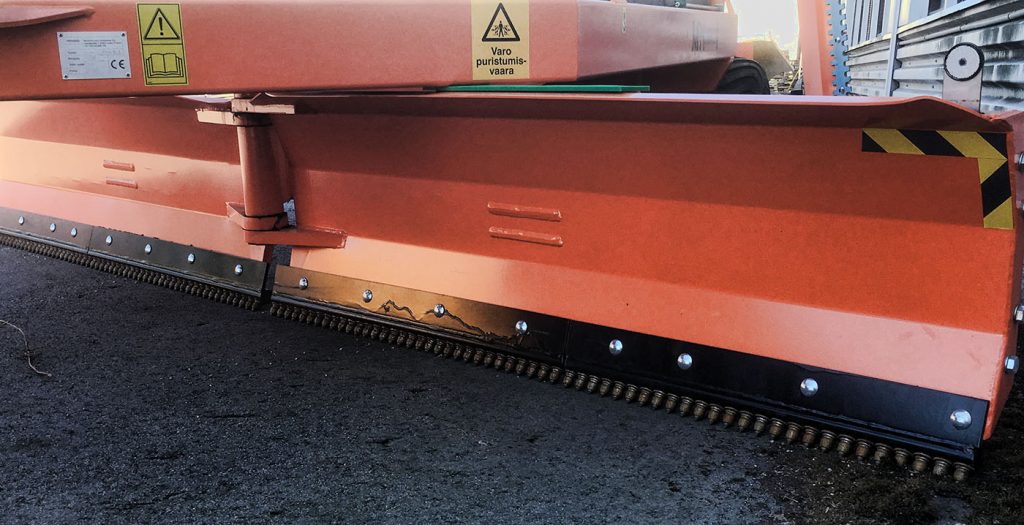

Pin blades, also toothed blades (flat blades as standard)
Support wheels

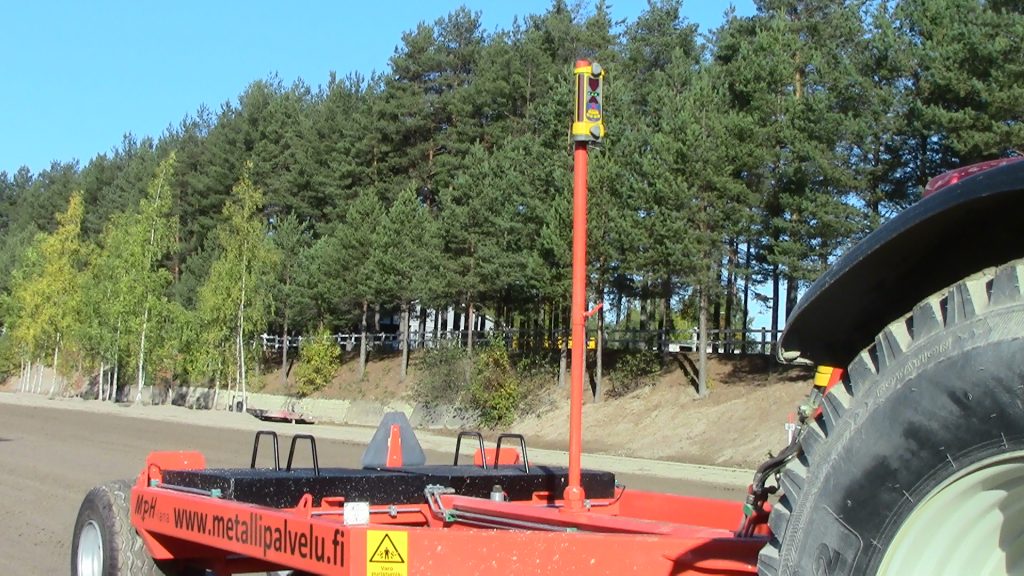

Double tilt leveling laser with a mast
The mast available as separate option

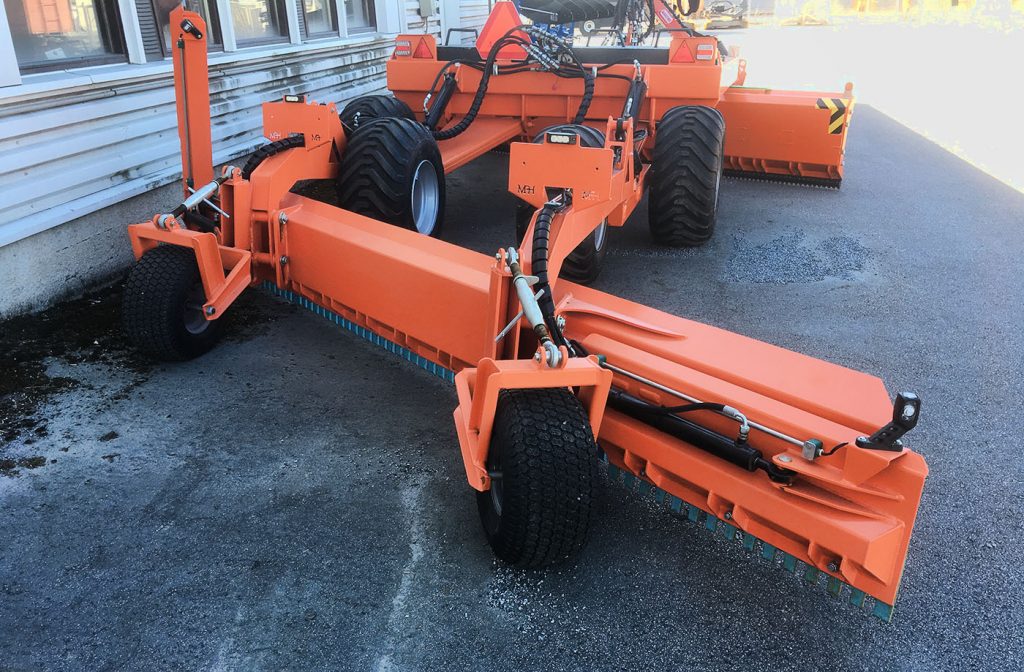

Stone collector with 2x800 kg weights

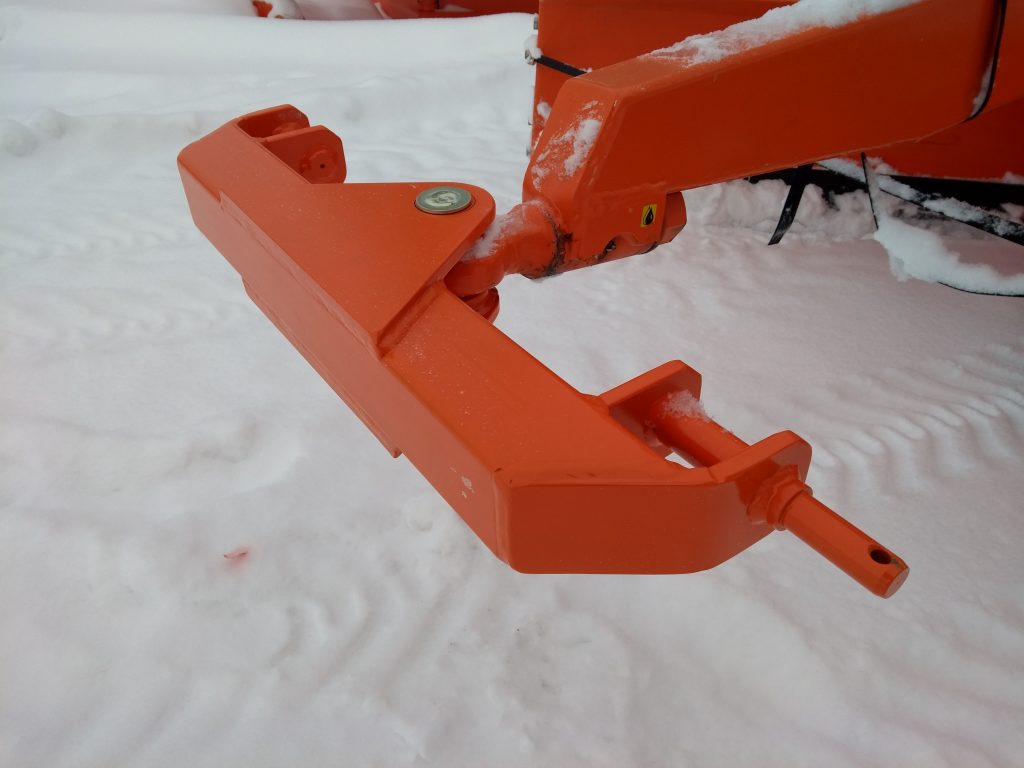

Traction device

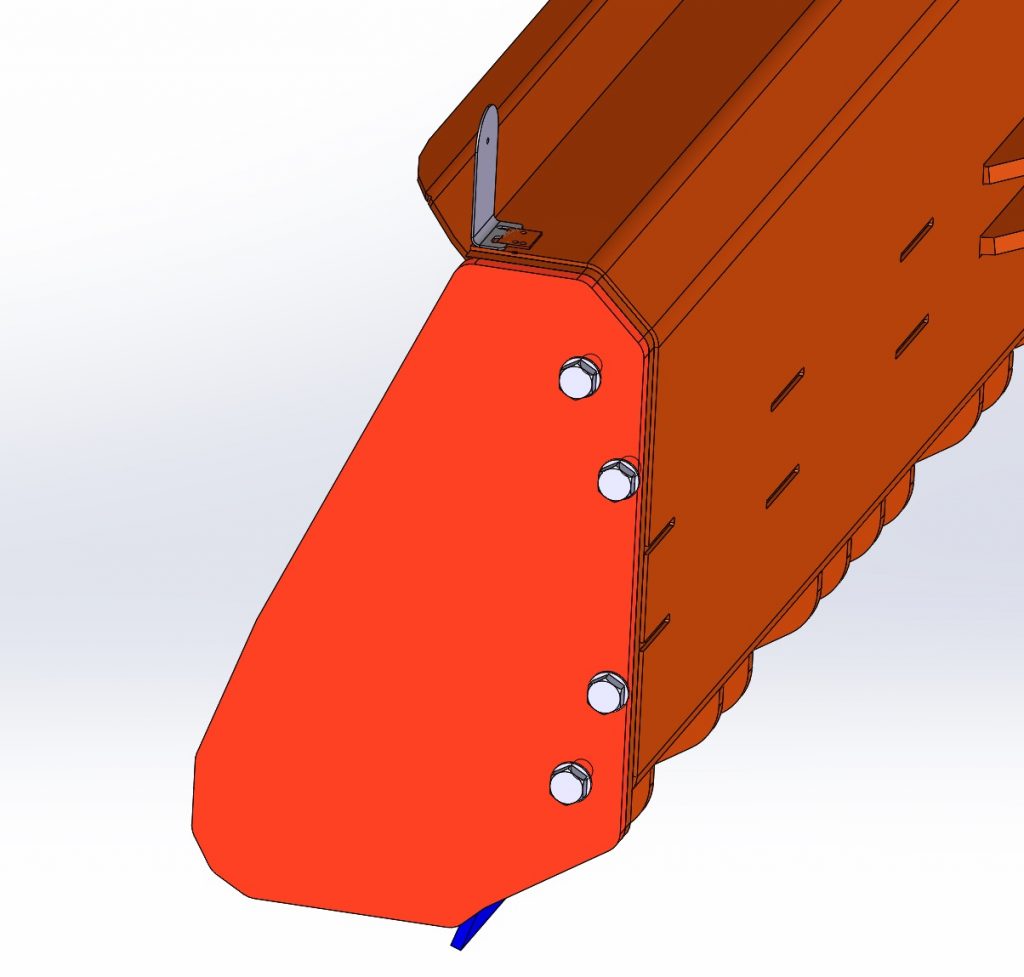

Wing end plate
Hydraulic brakes with stone collector
